8.42 To 8.5 GHz 17dBm Power Amplifier with 25 dB Small Signal Gain

Name: 842 To 85 GHz 17dBm Power Amplifier with 25 dB Small Signal Gain
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-PA-084085-G25P17

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : LT-PA series Power Amplifier

Application : Wireless Communication

Material : Aluminum

Temperature : -40~85℃

Frequency range : 8.42 to 8.5 GHz

Color : Silver

Contact Now

8.42 to 8.5 GHz LT-PA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Small Signal Gain 25dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PA-084085-G25P17 from ZR is a RF Amplifier with Frequency 8.42 to 8.5 GHz, Small Signal Gain 25 dB, Gain Flatness ±1.0 dB, Output Power 17dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-PA-084085-G25P17 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-PA-084085-G25P17
Configuration	Module with Connector
Frequency Range	8.42 to 8.5 GHz
Small Signal Gain	25 dB
Gain Flatness	±1.0 dB
Output Power	17 dBm
Input Power	5 dBm
VSWR	1.9:1
Power Supply	+5V / 150mA
Operating Temperature	-40 to +70 ℃
Dimension	34.416.88.1 mm
Note: for custom specs, please contact us directly.

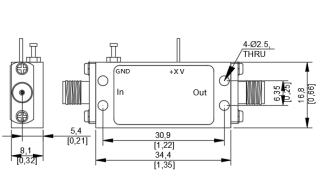

Outline Drawing (Unit: mm):
