2 To 4 GHz SP3T Reflective PIN Diode Switch

Name: 2 To 4 GHz SP3T Reflective PIN Diode Switch
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SW3TR-020040S

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : LT-SW series PIN Doide Switch

Application : Wireless Communication

Material : Aluminum

Temperature : -40~85℃

Frequency range : 2 to 4 GHz

Color : Silver

Contact Now

2 to 4 GHz LT-SW Series PIN Diode Switch

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Fast Switching Time 100ns

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SW3TR-020040S from ZR is a Reflective PIN Diode Switch with Frequency 2 to 4 GHz, Isolation 80 dB, Switching Speed 100ns. Power Supply with bias +5V/120mA and -5V/50mA. More details for LT-SW3TR-020040S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-SW3TR-020040S
Type	Reflective
Configuration	SP3T
Frequency Range	2 to 4 GHz
Insertion Loss	1.4 dB
Isolation	80 dB
Switching Speed	100 ns
Control	PIN
Input / Output VSWR	1.5:1
Input Power	1.0 W
Power Supply(Bias)	+5V / 120mA
Power Supply(Bias)	-5V / 50mA
Dimension	402510.5mm
Note: for custom specs, please contact us directly.

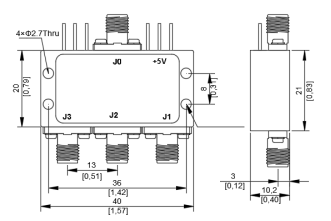

Outline Drawing (Unit: mm):

2 To 4 GHz SP3T Reflective PIN Diode Switch
