Surface Acoustic Wave Saw Resonators 349.925MHz To 336.075MHz

Brand Name : ZR Hi-Tech

Model Number : LT-SR-350-3070

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Contact Now

LT-SR-350-3070 LT-SR Series SAW Resonators with Frequency Range 349.925MHz to 336.075MHz
349.925MHz to 336.075MHz LT-SR Series SAW Resonator


Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: 30V

· RF Power Dissipation: 0dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty






Description:

The LT-SR-350-3070 from ZR is a SAW Resonator with Frequency 349.925MHz to 350.075 MHz, Centre Frequency 350 MHz, Insertion Loss 1.5 to 2.0 dB, Quality Factor Loaded 12000. Tags: Surface Mount, SAW Resonator. More details for LT-SR-350-3070 can be seen below.


Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)


Part Number : LT-SR-350-3070
ItemUnitesMin.Typ.Max.
Center FrequencyMHz349.925350.000350.075
Insertion LossdB 1.52.0
Quality Factor Unload Q  12000
50Ω Loaded Q  1500

Temperature

Stability

Turnover Temperature℃102540
Freq.temp.Coefficientppm/℃2 0.037
Frequency Agingppm/yr ≤±10
DC. Insulation ResistanceMΩ1.0
RF Equivalent RLC ModelMotional Resistance R1Ω 2126
Motional Inductance L1μ H 106.75
Motional Capacitance C1fF 1.89
Transducer Static CapacitancepF 2.1
Note: for custom specs, please contact us directly.

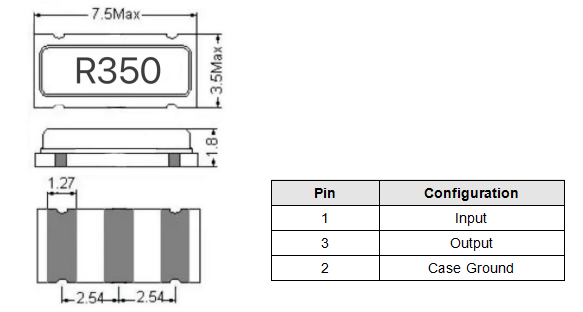

Outline Drawing (Unit: mm):

Surface Acoustic Wave Saw Resonators 349.925MHz To 336.075MHz

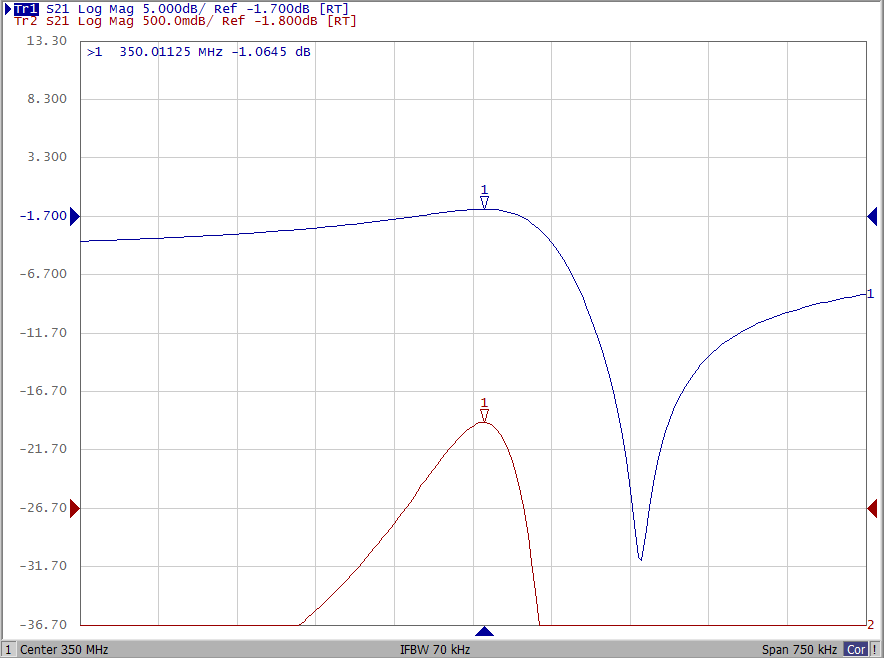

Typical Frequency Response

Surface Acoustic Wave Saw Resonators 349.925MHz To 336.075MHz


Product Tags:

Saw Resonator Crystal



Crystal SAW Resonators



349.925MHz SAW Resonators
