7 to 8 GHz 10 Watt LT-PD Series 2-Way Power Divider

7 to 8 GHz 2-Way Power Divider

Quick Detail:

· 2-Way Power Divider

· Stripline Design

· -40℃~+70℃ operating temperature

· 7 to 8 GHz Frequency Range

· Max Power 10 Watt

· Insertion Loss < 0.4 dB

· Isolation > 22 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-2S-070080 from ZR is a 2-way power divider that operates from 7 to 8 GHz and can handle up to 10 Watt (CW) with 0.4 dB max insertion loss and 22 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-2S-070080 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

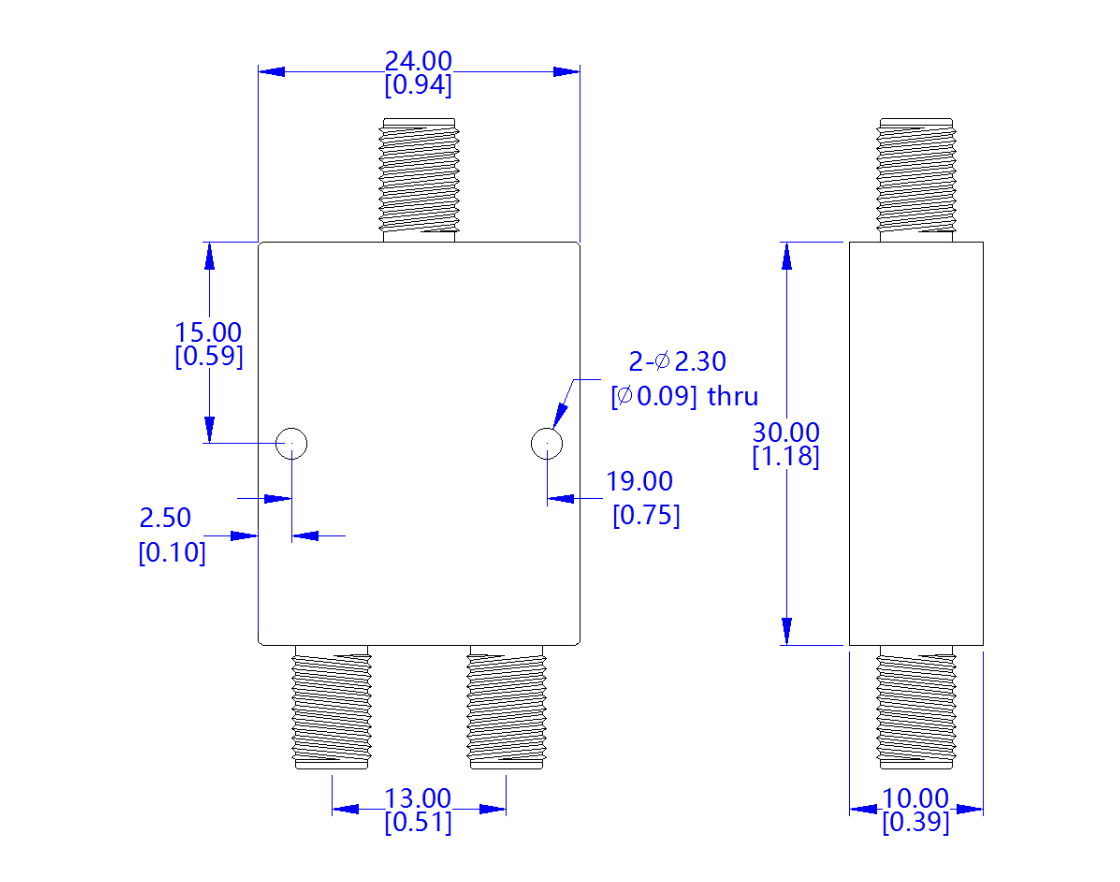

Outline Drawing (Unit: mm):

7 to 8 GHz Power Divider

8 GHz Power Divider

7 to 8 GHz 10 Watt LT-PD Series 2-Way Power Divider Images
