10MHz~50MHz 7.0×5.0mm, Quick Warm-up, High frequency & Low Noise voltage controlled crystal oscillator
Quick Detail:
· Aluminum housing
· 3.3V±5% Operating Voltage (VDD)
· -40℃~+85℃ operating temperature
· SMD package
· High precision
· Low phase noise
· HCMOS Output Waveform
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-bv0507e(OE) is the newest addition to ZR’s line of VCXOs. The standard part offers an ultra-tight stability of ±15 ppm over -40ºC to +85ºC across a supply voltage -3.3V. The LT-CR-bv0507e(OE) uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 7.0 mm x 5.0 mm x 2.0 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| |
| Items | Specification | Conditions |
| Part Number | LT-CR-bv0507e(OE) | |
| Frequency Range | 10MHz~50MHz | |
| Operating Voltage(VCC) | 3.3V | |
| Operating Current | ≤35mA | |
| Operating Temperature | -40℃~85℃ | |
| Freq. Stability Vs. Temp. | ≤±20ppm | Vcon=1.65V,At +25℃ |
| Frequency Tolerance | | |
| Output Waveform | LVCMOS | |
| Output Load | 15pF | |
| Output logic Level | High Level:≥2.4V； Low Level:≤0.4V | |
| Rise/Fall Time | ≤3ns | LVCMOS Output, Load=15pf |
| Duty Cycle(%) | 45%~55% | |
| Voltaged Voltage Range(VC) | 0~3.3 | |
| Voltaged Frequency Range | ≥±30ppm | |
| Slope | Positive | |
| Linearity | ≤10% | |
| Input Impendance | | |
| Phase Noise (typ.) | -70dBc/Hz @10Hz； -110dBc/Hz @100Hz； -140dBc/Hz @1kHz； -150dBc/Hz @10kHz； -160dBc/Hz @100kHz； | Typical Frequency:16.384MHz At +25℃ |
| Dimension | 7.0 mm x 5.0 mm x 2.0 mm | |
| Note: for custom specs, please contact us directly. |

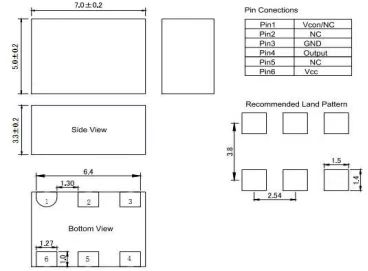

Outline Drawing (Unit: mm):
