Aluminum 5V-15V High Precision MEMS Pressure Sensor

Brand Name : ZR Hi-Tech

Model Number : LT-SS-P-10-700-SOP

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : MEMS Pressure Sensor

Features : High infrared responsiveness, repeatability and reliability

Material : Aluminum

Operating Temperature : -30~100℃

Application : Pressure Detection

Color : Silver

Contact Now

LT-SS series high precision MEMS pressure sensor



Quick Detail:

·SOP or DIP packaging

· MEMS technology

· Table pressure type

· Suitable for non-corrosive gases

· high sensitive

· Pressure detection

· CE, RoHS, REACH compliant

· 1 Year Warranty



Description:

LT-SS-P-10-700-SOP is a ZR part number for MEMS pressure sensor;High sensitivity;Good stability,





Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)








Items Specification Conditions
Part Number LT-SS-P-10-700-SOP
Voltage power supply 5~15V
Current power supply 1~3mA
Range of measurement 10,20,40,100,200,700 kPa
Zero output -10~10mV
Full range output 10kPa 35~65mV
Full range output 20kPa 35~50mV
Full range output 40kPa 60~90mV
Full range output 100/200kPa 60~120mV
Full range output 700kPa 30~60mV
Overload capacity(pressure range≤40 kPa) 3X rate
Overload capacity(40 kPa≤pressure range≤200kPa) 2X rate
Overload capacity(pressure range≤200kPa) 1.5X rate
Operating Temperature -30℃~+100℃
Storage Temperature -40℃~+150℃
Nonlinear(pressure range≤10 kPa) -1.0~1.0 %FS
Nonlinear(20 kPa≤pressure range) -0.3~0.3 %FS
Sluggish -0.3~0.3 %FS
Repetitiveness -0.3~0.3 %FS
Note: for custom specs, please contact us directly.

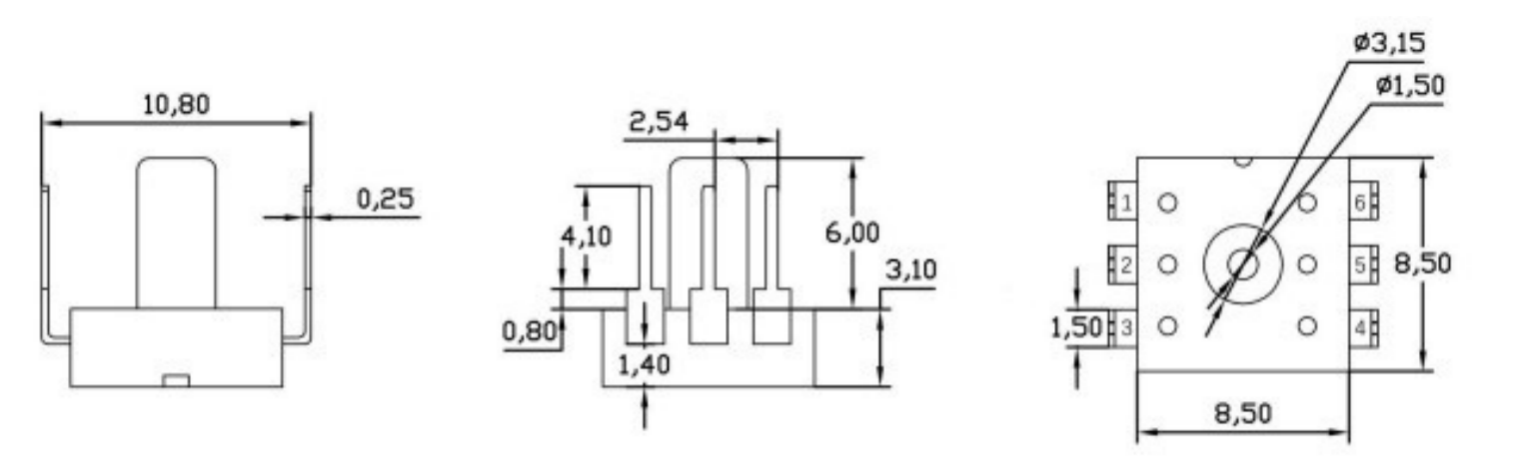

Outline Drawing (Unit: mm):



Aluminum 5V-15V High Precision MEMS Pressure Sensor

                                                                         (SOP outline)



Aluminum 5V-15V High Precision MEMS Pressure Sensor

                                                                      (DIP Outline - R type)



Aluminum 5V-15V High Precision MEMS Pressure Sensor

                                                                         (DIP Outline - F type)
