NDIR CO Gas Sensor With High Infrared Response Rate

Name: NDIR CO Gas Sensor With High Infrared Response Rate
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SS-G3AD-CO

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : Gas Sensor

Features : High infrared responsiveness, repeatability and reliability

Material : Aluminum

Operating Temperature : -30~100℃

Application : HVAC、Indoor Air Quality Monitoring

Color : Silver

Contact Now

1.8*1.8MM LT-SS series high precision gas sensor

Quick Detail:

· Aluminum housing

· High infrared response rate

· -30℃~+100℃ operating temperature

· High repeatability

· high reliability

· NDIR CO

· HVAC,Indoor Air Quality Monitoring

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

LT-SS-G3AD-CO is a ZR part number for Gas Sensor, Viewing Angle 108°;High sensitivity;Good stability, working temperature: -30℃~+100℃;

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)


Items	Specification	Conditions
Part Number	LT-SS-G3AD-CO
Chip Size	1.8*1.8mm
Sensitive Area	1.4*1.4mm
Field	108°
Resistance	72±8 kΩ
Noise Figure	34±2 nV/Hz^1/2
Noise Equivalent Power	0.43 nW/Hz^1/2
Response Ratio	78V/W
Time Constant	25ms
Detectivity	1.6E08 cm*Hz^1/2/W
Thermistor Value	100±1% kΩ
Thermistor Beta Value	3950±1% K
Operating Temperature	-30℃~+100℃
Storage Temperature	-40℃~+125℃
Dimension	14×9 series(4pad)
Note: for custom specs, please contact us directly.

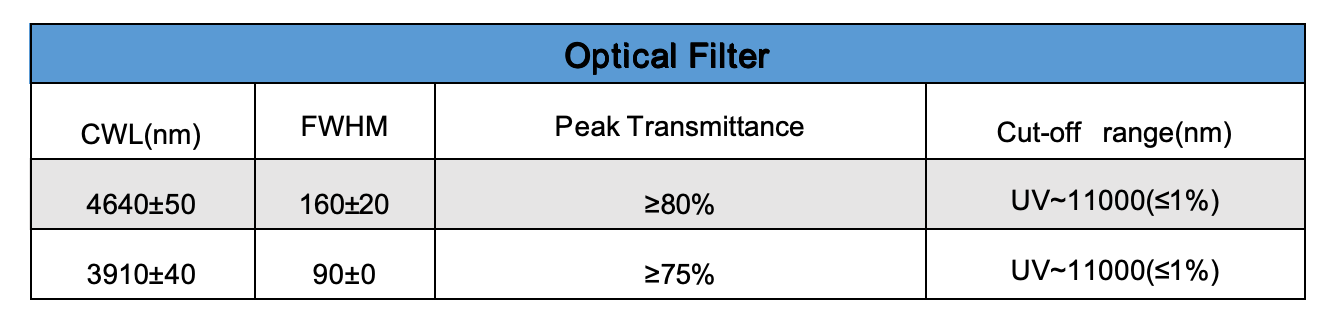

Filter:

NDIR CO Gas Sensor With High Infrared Response Rate

Outline Drawing (Unit: mm):

NDIR CO Gas Sensor With High Infrared Response Rate
