LT-DC Series 20dB Directional Coupler 33-38 GHz 20 Watts Optimal Signal Management for Frequency System

Brand Name : ZR Hi-Tech

Model Number : LT-DC20-330380K

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,D/A,D/P

Delivery Time : 4 weeks

Packaging Details : carton packing

Contact Now

33 to 38 GHz 20dB Directional Coupler





Quick Detail:

· 20dB Directional Coupler

· Directivity > 12 dB

· 33 to 38 GHz Frequency Range

· Lost VSWR < 1.6:1

· Coupling 20±1.0 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty





Description:



The LT-DC20-330380K from ZR is a 20dB Directional Coupler that operates from 33 to 38 GHz and can handle up to 20 Watt (CW) with 12 dB directivity min and 1.6:1 VSWR max,The package interface uses 2.92mm Female connectors and is REACH and RoHS compliant.More details for LT-DC20-330380K can be seen below.





Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)



Items

Specification

Conditions

Part Number

LT-DC20-330380K



Frequency Range

33 to 38 GHz



Coupling

20±1.0 dB



Impedance

50 Ohms



Main Line VSWR

1.6:1 Max.



Coupling VSWR

1.6:1 Max.



Insertion Loss

1.2 dB Max.



Frequency Balance

1.2 dB Max.



Directivity

12 dB Min.



Input Power

20 W



Connectors

2.92mm Female



Weight

45 g



Dimension

31.8x12.7x15.9 mm



Note: for custom specs, please contact us directly.

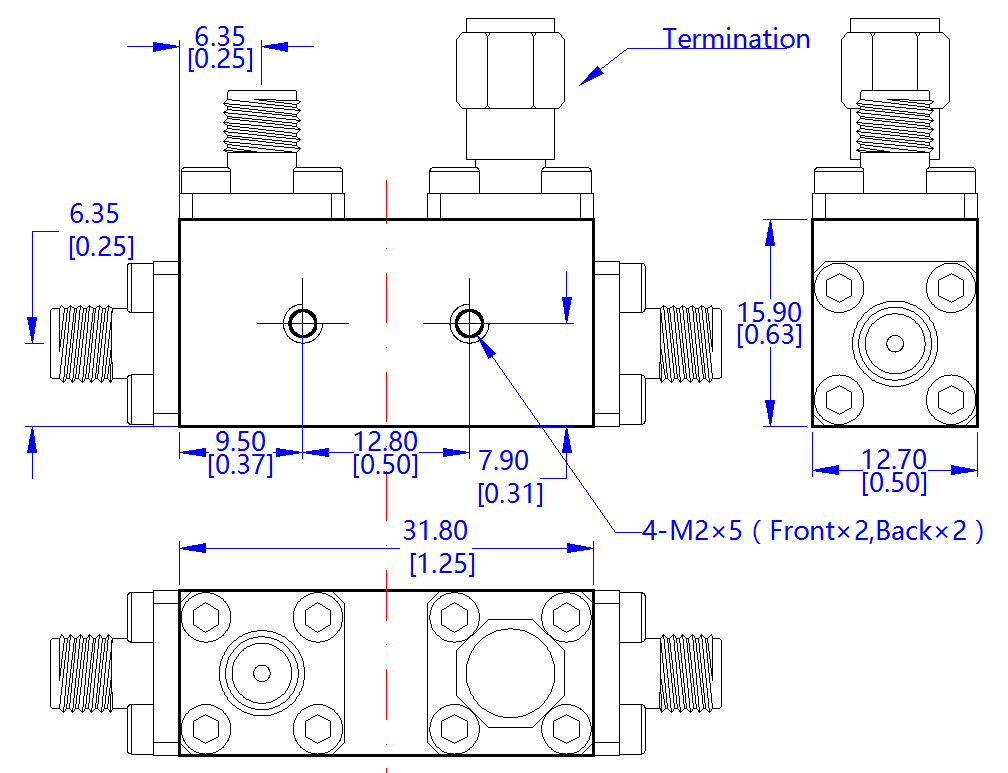

Outline Drawing (Unit: mm):

LT-DC Series 20dB Directional Coupler 33-38 GHz 20 Watts Optimal Signal Management for Frequency System
