High Infrared Response Rate Temperature Sensor

Name: High Infrared Response Rate Temperature Sensor
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SS-T3AL-F55

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : Temperature Sensor

Features : High infrared responsiveness, repeatability and reliability

Material : Aluminum

Operating Temperature : -20~85℃

Application : Temperature Measurement

Color : Silver

Contact Now

LT-SS-T3AL-F55 High Infrared Response Rate Temperature Sensor for Industrial

Quick Detail:

· Aluminum housing

· High infrared response rate

· -70℃~+300℃ temperature measure range

· high reliability

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

LT-SS-T3AL-F55 is a ZR part number for Temperature Sensor. TO-39 package, viewing Angle 38°; High infrared absorption layer structure, high sensitivity; Fully integrated digital infrared thermopile; I2C interface, support PWM, relay mode output; Good stability, working temperature: -20℃~85℃; Built-in high precision 24-Bit Sigma delta ADC, and calibration DSP algorithm, etc. Temperature measurement range: -20~+300℃; Temperature measurement accuracy: ±1℃ below 100℃, ±2% above 100℃.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)


Items	Specification	Conditions
Part Number	LT-SS-T3AL-F55
Thermopile Sensitive Area	1.4*1.4mm2
Field	38°
Operating Voltage	2.3V Min.
Operating Currrent	800μA Max. ; 507μA Typ.
Sleep Currrent	5μA Typ.
Operating Temperature	-20℃~+85℃
Storage Temperature	-40℃~+125℃
ESD performance HMB	±2kV Typ.
Filter Wavelength Range	5.5-15 μm
Measuring Range	-70℃~+300℃
Accuracy	+/-1℃(100℃ Min.@measure range+/-2%)
Note: for custom specs, please contact us directly.

Field

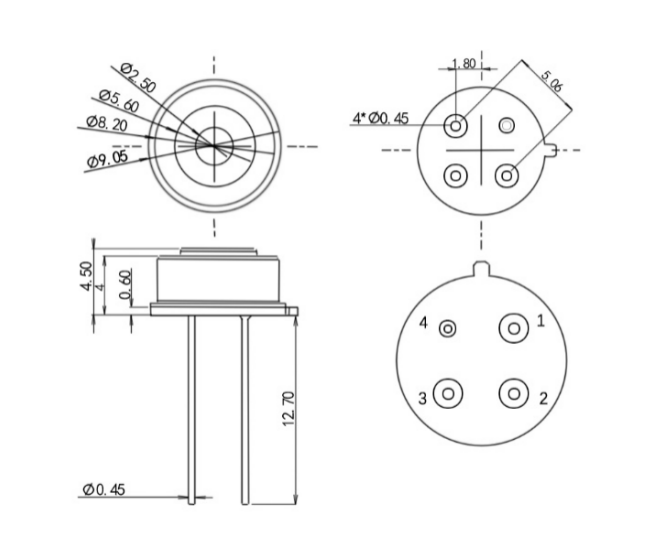

Outline Drawing (Unit: mm):

High Infrared Response Rate Temperature Sensor
