High Infrared Response Rate Human Body Temperature Sensor

Name: High Infrared Response Rate Human Body Temperature Sensor
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SS-T1B-F55

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : Temperature Sensor

Features : High infrared responsiveness, repeatability and reliability

Material : Aluminum

Operating Temperature : -20~85℃

Application : Forehead thermometer

Color : Silver

Contact Now

LT-SS-T1B-F55 High Infrared Response Rate Human Budy Temperature Sensor

Quick Detail:

· Aluminum housing

· High infrared response rate

· -20℃~+100℃ temperature measure range

· high reliability

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

LT-SS-T1B-F55 is a ZR part number for Temperature Sensor. viewing Angle 82°; High infrared absorption layer structure, high sensitivity; Fully integrated digital infrared thermopile; I2C interface, support PWM, relay mode output; Good stability, working temperature: -20℃~100℃

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)


Items	Specification	Conditions
Part Number	LT-SS-T1B-F55
Chip Size	1.15*1.15mm
Sensitive Area	0.85*0.85mm
Voltage Response	0.77mv
Field	82°
Resistance	160±15 kΩ
Noise Figure	52±2 nV/Hz^1/2
Noise Equivalent Power	0.55 nW/Hz^1/2
Response Ratio	95V/W
Time Constant	18ms
Detectivity	1E08 cm*Hz^1/2/W
Thermistor Value	100±1% kΩ
Thermistor Beta Value	3950±1% K
Operating Temperature	-20℃~+100℃
Storage Temperature	-40℃~+125℃
Dimension	16.8×5.35 series(4pad)
Note: for custom specs, please contact us directly.

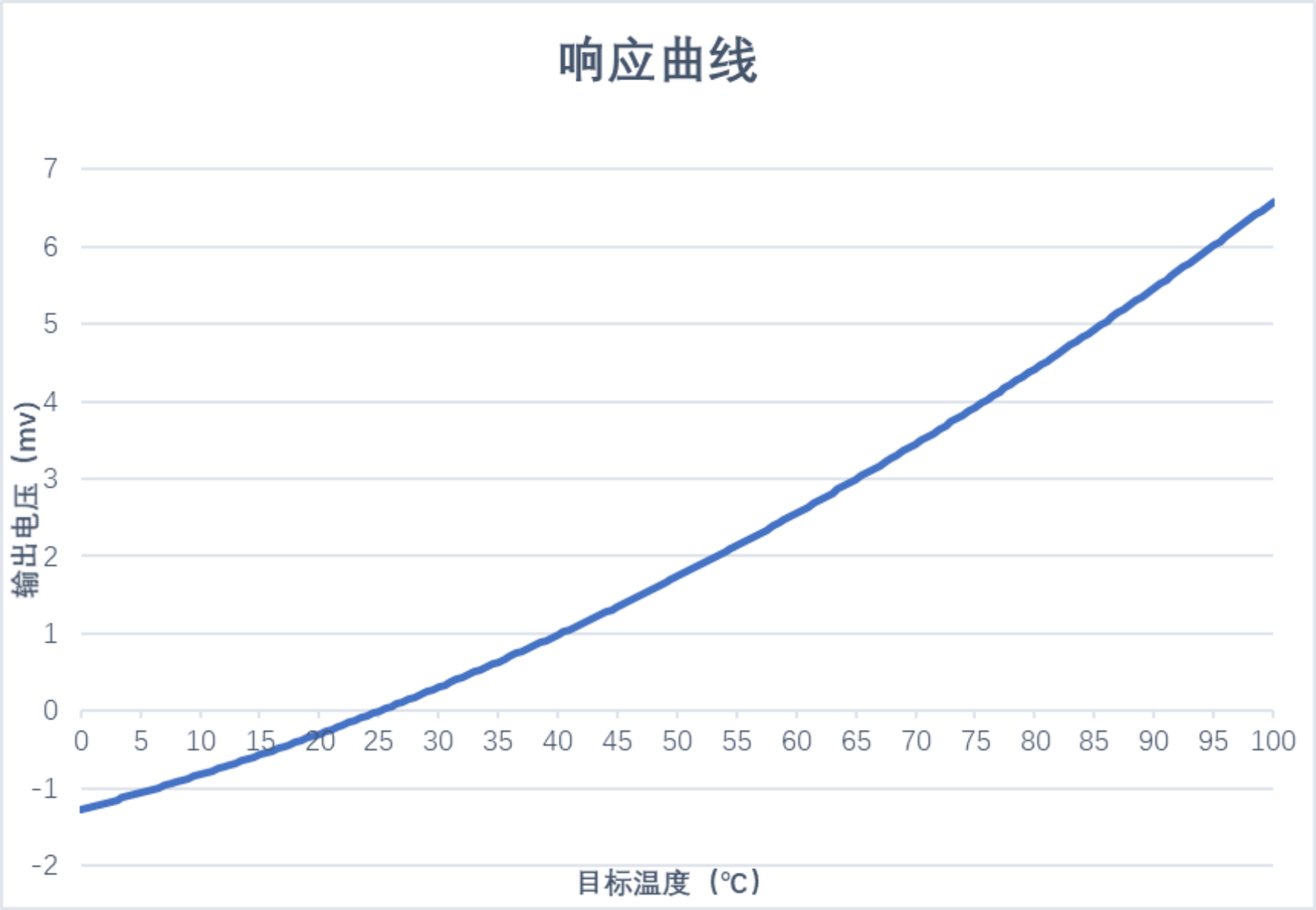

Response Curve

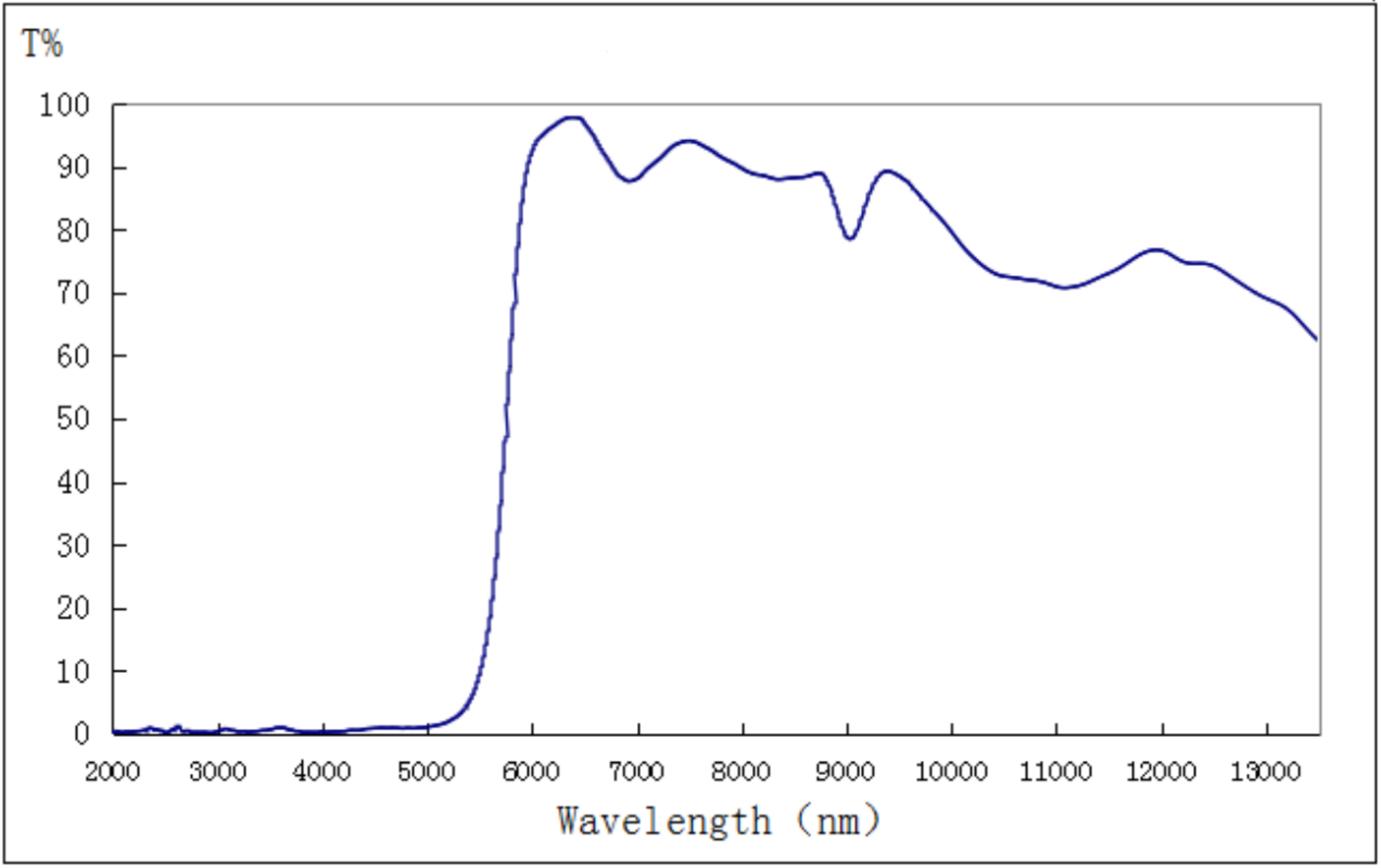

Filter

High Infrared Response Rate Human Body Temperature Sensor

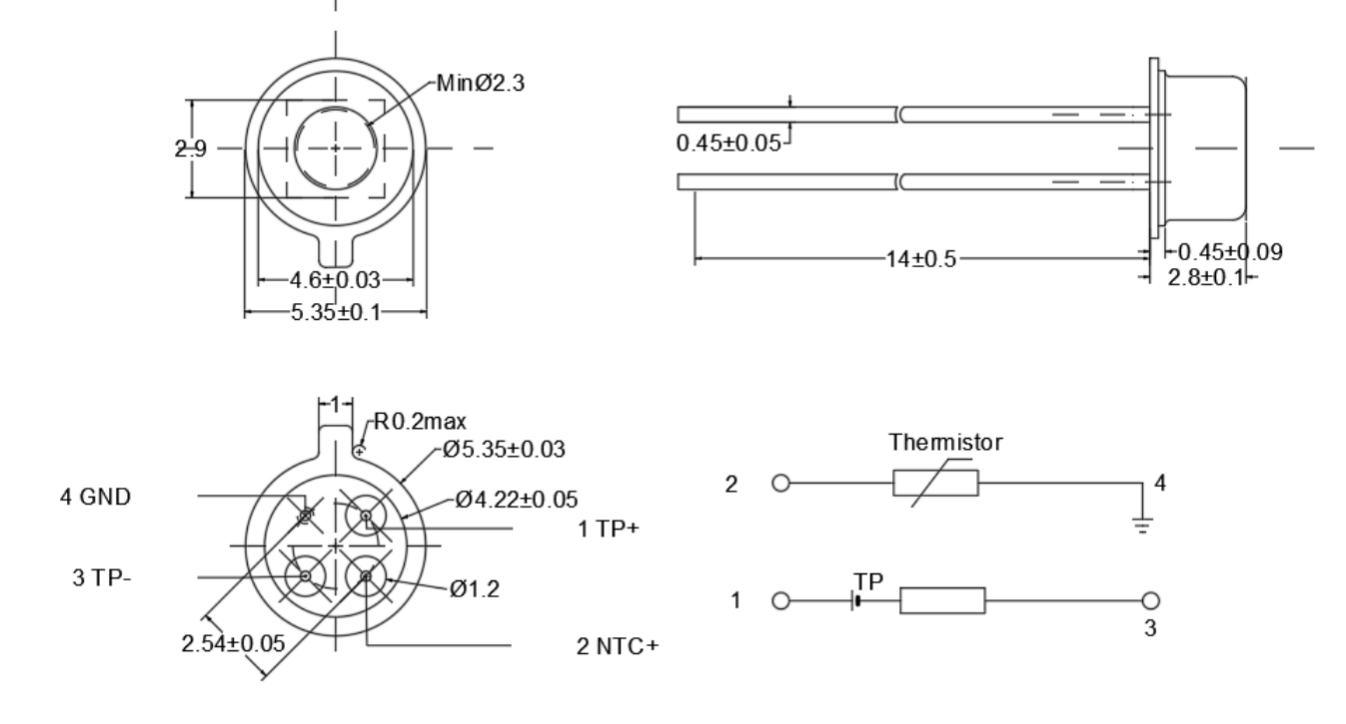

Outline Drawing (Unit: mm):

High Infrared Response Rate Human Body Temperature Sensor
