Name: 1414mm High Precision MEMS Thermoeletric stack sensor
Brand: ZR Hi-Tech
Price: 1 USD

Brand Name : ZR Hi-Tech

Model Number : LT-SS-T3AL-F55

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : MEMS Pressure Sensor

Features : High infrared responsiveness, repeatability and reliability

Material : Aluminum

Operating Temperature : -20~85℃

Application : Temperature Detection

Color : Silver

Contact Now

LT-SS series high precision MEMS thermoeletric stack sensor

Quick Detail:

·SOP or DIP packaging

· MEMS technology

· Temperature measurement range:-20~+300℃

· I2C interface,support PWM

· high stability,Operating Temperature -20℃~85℃

· TO-39 package,Viewing Angle 38°

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

LT-SS-T3AL-F55 is a ZR part number for MEMS thermoeletric stack sensor;Viewing Angle 38°,High sensitivity;Good stability,

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)


Items	Specification	Conditions
Part Number	LT-SS-T3AL-F55
Chip Size
Sensitive Area	1.4*1.4mm
Viewing Angle	38°
Operating voltage	3.6V
Operating current	507μA
Sleep current	5 μA
Operating Temperature	-20℃~+85℃
Storage Temperature	-40℃~+125℃
ESD performance HMB	±2kV
Wavelength range of filter	5.5~14 μm
Temp. measurement range	-70~+300 ℃
Temp. measurement accu.	±1℃(>100 temp.measurement±2% of the bubble)
Note: for custom specs, please contact us directly.

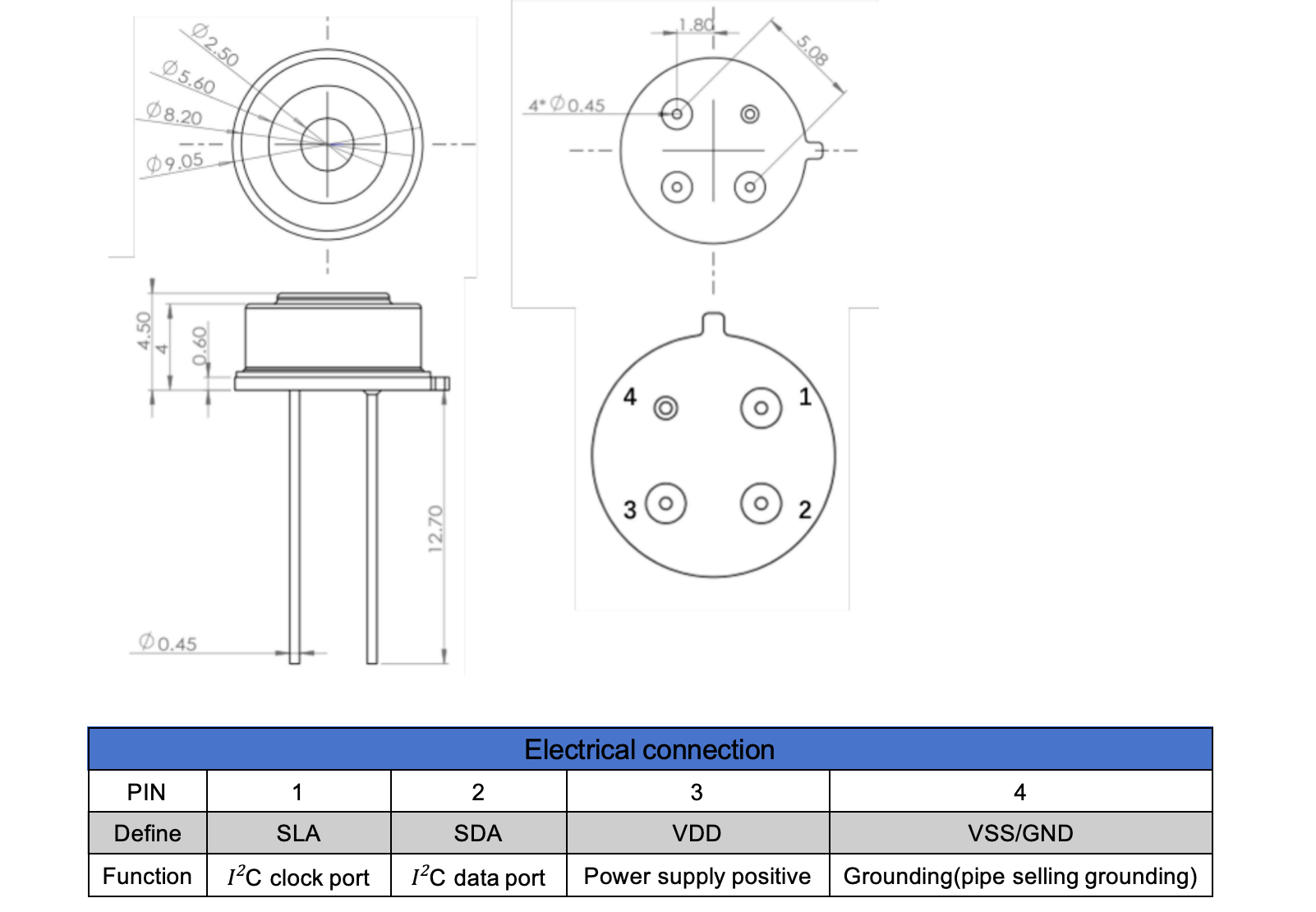

Outline Drawing (Unit: mm):

1.4*1.4mm High Precision MEMS Thermoeletric stack sensor
